H² Ready

1200-4100 kW

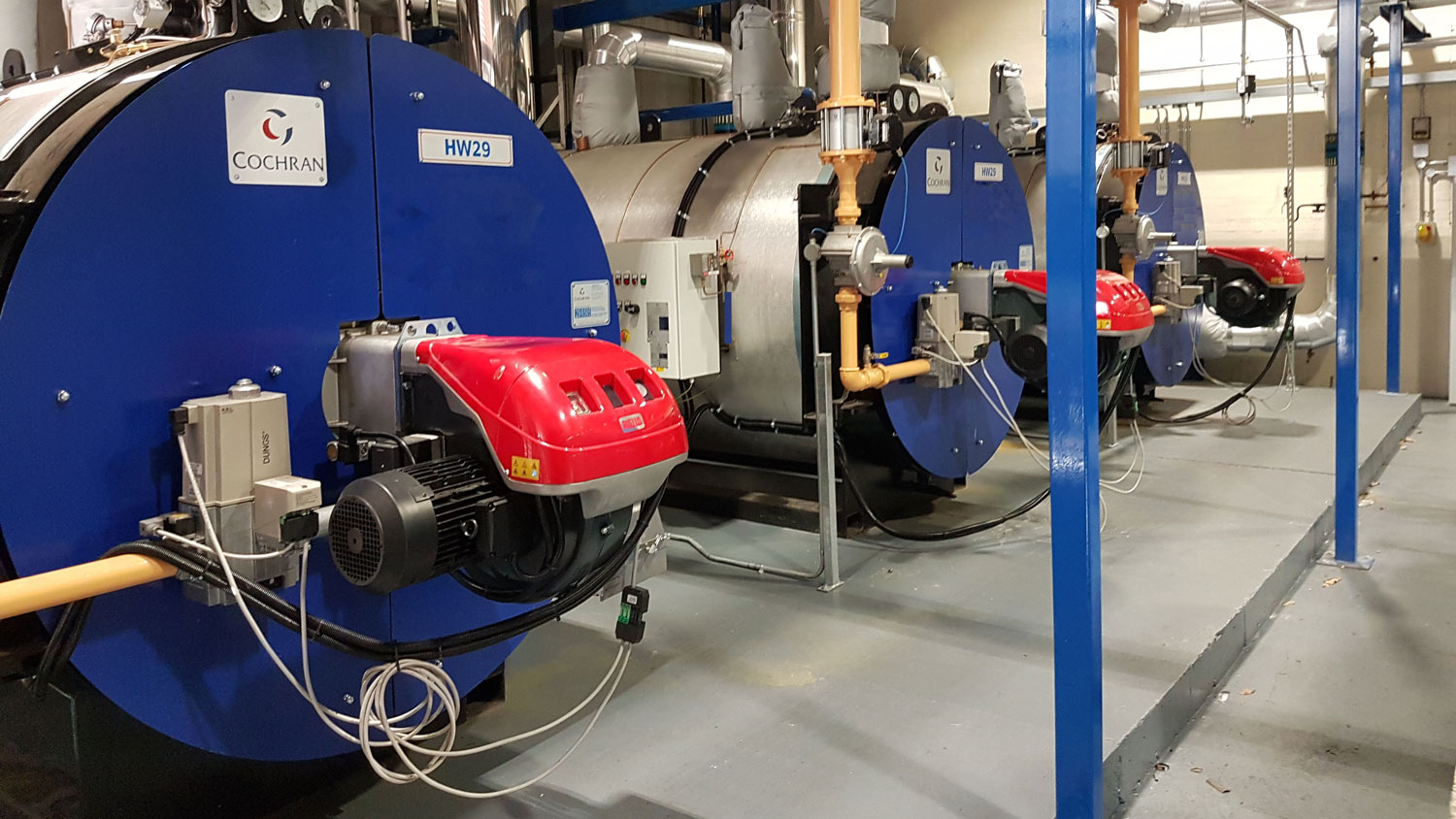

Cochran's HW29 horizontal three pass reverse flame hot water boiler is constructed in compliance with BS EN 12953, and when fitted with compliant combustion equipment, the boiler meets the latest European environmental legislation and the Medium Combustion Plant Directive (MCPD). This model is suitable for both low and high temperature applications.

The boiler is designed to meet the current UK building regulations with gross seasonal efficiency of over 86% and complies with the requirements of the Factories Act (1961) and with HSE and UK Inspection Authority requirements.

In addition, the Boiler is UKCA, UKNI+CE, CE or ASME marked to meet the requirements of the Pressure Equipment; Low Voltage; Electro-Magnetic Compliance; and Machinery Safety Directives. Throughout the manufacturing process, this boiler is subject to inspection by a leading Independent Insurance Company, in addition to Cochran's own ISO 9001-compliant quality procedures.

Cochran's HW29 packaged hot water boiler offers the following key features and optional upgrades

  • A compact, fully wet-back hot water boiler range, developed to meet today's demands for higher operational efficiencies and lower emissions.
  • Provides energy saving, low emissions solutions for commercial and industrial applications.
  • Normal operating pressure is 5.25 Barg, with options up to 10 Barg.
  • Wide range of combustion, control packages and economiser options.
  • Turndown of up to 6:1.
  • Variable speed drives for FD Fan motor helps deliver low noise levels and reduce power consumption.
