18,000-40,000

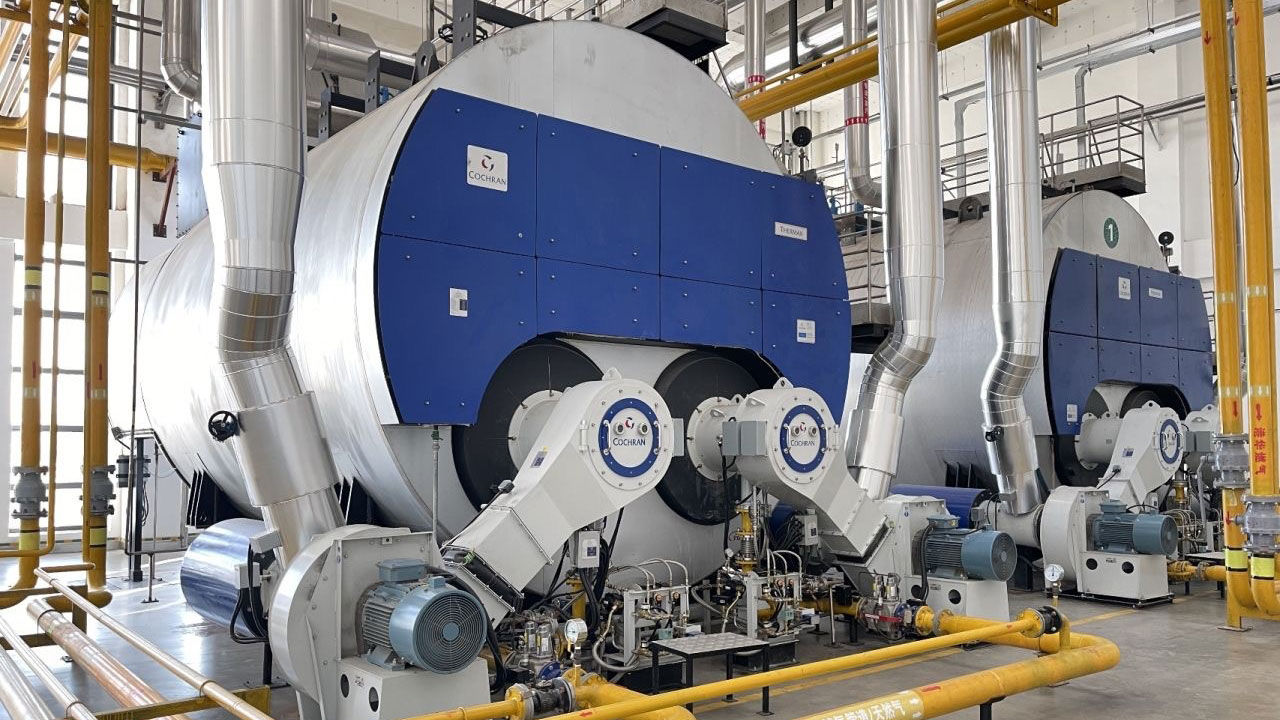

Cochran's ST32 Low NOx packaged steam boiler is a horizontal three pass wet back design constructed in accordance with BS EN 12953. When fitted with compliant Cochran, or equivalent, combustion equipment, the boiler meets the latest European environmental legislation, the Medium Combustion Plant Directive (MCPD).

It also complies with the requirements of the Factories Act (1961) and Guidance on Safe Operation of Boilers Ref: BG01 developed by the Safety Assessment Federation (SAFED) and the Combustion Engineering Association (CEA).

In addition, the ST32 is UKCA, UKNI+CE, CE or ASME marked to meet the requirements of the Pressure Equipment Directive (PED), Low Voltage; Electro-Magnetic Compliance & Machinery Safety Directives.

Throughout the manufacturing process, this boiler is subject to inspection by a leading Independent Insurance Company, in addition to Cochran's own ISO 9001-compliant quality procedures.

Cochran's ST32 packaged twin furnace steam boiler offers the following key features and optional upgrades:

• UKCA, UKNI+CE or CE marked, horizontal three-pass, wet-back boiler design developed from Cochran's renowned Thermax range.
• Output range of 18000 kg/hr to 40000 kg/hr F&A 100°C at a nett efficiency of up to 95%.
• Designed and constructed in accordance with the latest European environmental legislation.
• BS EN 12953 and MCPD compliant, subject to other plant and equipment within the boilerhouse.
• Normal operating pressure 10 Barg, with options up to 30 Barg.
• Features Cochran's low NOx burners as standard.
• Wide range of combustion and control packages, superheater and economiser options.
• Turndown of up to 7:1.
• Cochran Eclipse or Synergy Touchscreen HMI with Modbus interface and remote access capability.
• Variable speed drives for FD Fan and Feed water pump motors help deliver low noise levels and reduce power consumption.
• Enhanced insulation for lower touch temperature.
